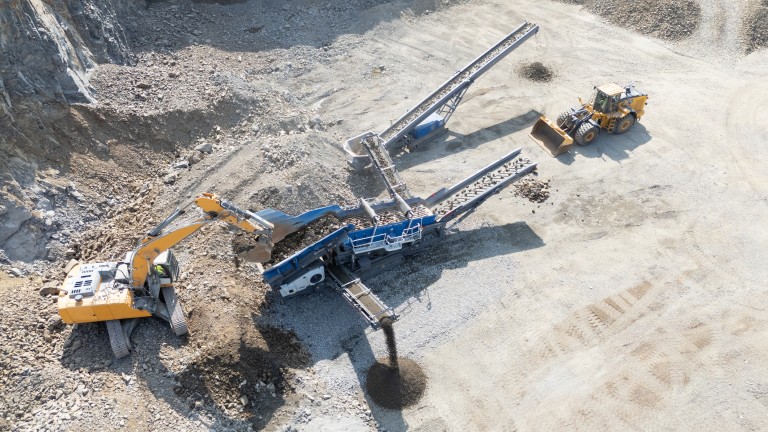

The new MOBISCREEN MSS 1102 PRO mobile scalper from Kleemann is designed for higher output, simple operability, and comfortable ergonomics. With its Dual Power drive, the machine can be operated fully electrically and comes close to zero operating emissions.
The power you need in a compact design
With the MOBISCREEN MSS 1102 PRO, Kleemann extends its portfolio of mobile scalpers above the established MOBISCREEN MSS 802 EVO. Its large dimensioned feed hopper and a screen casing of 120 ft2 (11.2 m2), the plant achieves feed rates of up to 827 US t/h (750 t/h).
High operational flexibility is managed by the infinitely variable adjustment of the speed of all conveyor belts and easy conversion from two to three final grain sizes. The wide range of screen casing angles (12.5 – 17.0 degrees) makes it possible to simultaneously achieve high screening performance and quality output.
An extensive range of screening media enables efficient utilization of the plant. Whether these are finger decks for loamy soils or square mesh for classifying decorative stone chips, the screen decks of the MOBISCREEN 1102 PRO can be fitted with screening media to meet the needs of individual applications. The screen decks can also be fitted with a combination of screening media. Overall, the new plant offers a broad spectrum of potential configurations that enable it to deliver impressive performance as a standalone machine or in conjunction with other Kleemann plants.
Simple control allows operators to optimize output
The intuitive plant control system of the MSS 1102 PRO reduces the risk of operating errors and considerably reduces the time required for training new personnel. Additionally, all relevant functions can be operated from a safe distance, thereby ensuring greater occupational safety. The optional SPECTIVE radio remote control also makes operation of the screening plant easier: It can be used to control not only the driving function but also all plant setting functions. Furthermore, it makes convenient speed setting of the hopper discharge conveyor possible, as well as the cutting in of further functions such as the water spray system.
Kleemann screening plants can now also be equipped with SPECTIVE CONNECT. This digital application provides operators with all relevant data, such as speed, consumption values, and fill levels, directly on their smartphones. The stockpile monitoring function provides a display of the current status of material stockpiles. When a predefined value is reached, a message appears indicating that the stockpile should be cleared as soon as possible. This makes the work easier and increases productivity.
