As a primary crusher, the REMAX 600 produces up to 600 tph.
SBM Mineral Processing
Hybrid-electrified flagship

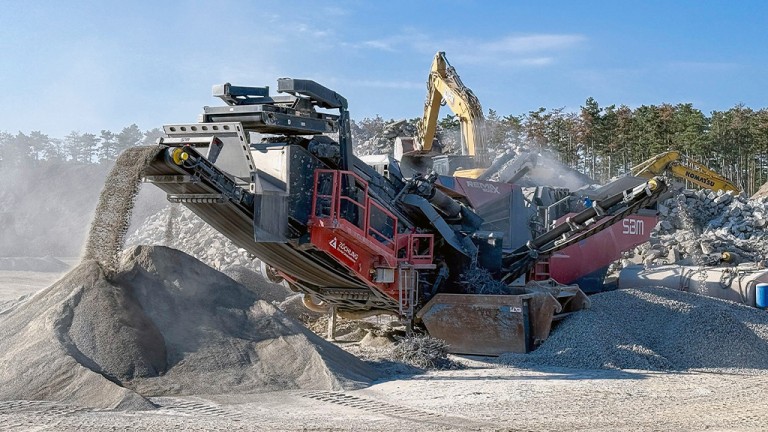

The tracked SBM REMAX 600 large impact crusher will make its North American trade show debut in Las Vegas. Whether used as a powerful primary crusher with a maximum capacity of 600 tph and a feed size of up to 40 inches, or as a mobile gravel or recycling plant capable producing up to five end products in a single pass, the 80-ton flagship of SBM Mobiles sets a new standard.
Like all nine JAWMAX jaw crushers, the REMAX impact crushers feature operating weights starting at 23 tons and production capacities from 250 tph. The REMAX 600 also features a hybrid electrified drive concept. The benefits of an advanced diesel-electric plug-in solutions are especially evident in the large crusher segment, it features an onboard Cummins X15 diesel engine paired with a 520 kVA generator and predominantly electric auxiliary drives, the REMAX 600 consumes up to 40 percent less diesel than comparable fully hydraulic or partially electrified systems, even under full load.
SBM’s hybrid concept also delivers advantages in uptime and environmental performance: fewer hydraulic systems mean reduced maintenance and fewer potential leak points. In addition, the onboard diesel engine consistently operates in a low-wear, low-speed load range, resulting in lower noise levels and reduced exhaust emissions.
The REMAX 600 offers an extensive range of standard equipment and optional add-ons. As standard, the impact crusher (inlet: 55 x 40 inches / 1,380 x 1,000 mm) is preceded by a double deck circular vibrating screen; attachable production screens are available with up to three decks. For particularly high-quality recycled end products, the plant can be equipped with two discharge magnets: a cross-belt magnet directly above the main discharge conveyor, and a highly efficient longitudinal discharge magnet above the multi-deck add-on screens. These screens can also be equipped with up to three air classifiers.
All equipment remains on the machine during one-piece transport. With its quick-connect cabling, the add-on screens can be removed quickly, allowing flexible use of the unit as a primary crusher. The intelligent SBM CRUSH CONTROL system supports fast commissioning and enables safe, efficient operation even for less experienced operators, thanks to comprehensive sensor technology and automatic adjustment of all plant functions.
